🔌 High-Quality 12V Switching Power Supply
This switching power supply delivers reliable, isolated 12V power with low ripple voltage and full protection for astrophotography setups.
⚡ Power & Usage Examples:
- Medium equatorial mount (EQ6, HEQ5, CEM60, AVX): 5–10W tracking, 20–30W slewing
- Medium cooled CCD/CMOS camera: 20–30W at full cooling
- DSLR during exposure: 3–5W
- Dewcap heaters: 6–15W depending on aperture
- HDMI stick / Raspberry Pi-class computer: 5–10W
- USB-powered guide or CMOS camera: 1–4W
📊 Technical Specifications:
- Input voltage: 100–240 VAC, 47–63 Hz
- Idle power: 0.5 W
- Efficiency: >85%
- Output voltage: 12 V
- Output power: 90 or 120 W
- Output current: 7.5 or 10 A
- Max ripple voltage: 200 mVp-p
- DC cable: 1.5 m
- AC cable: 1.8m

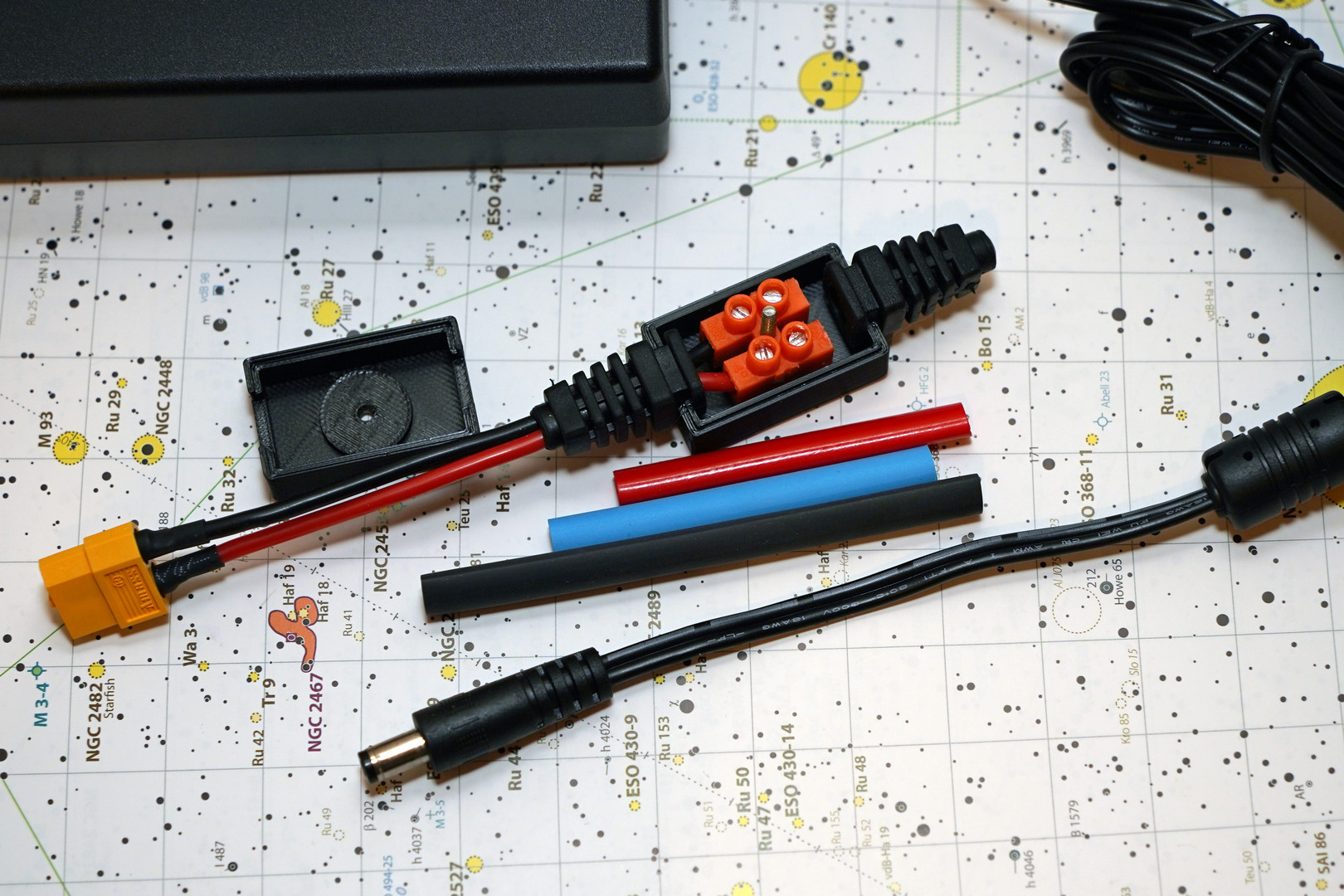

📦 In the box:

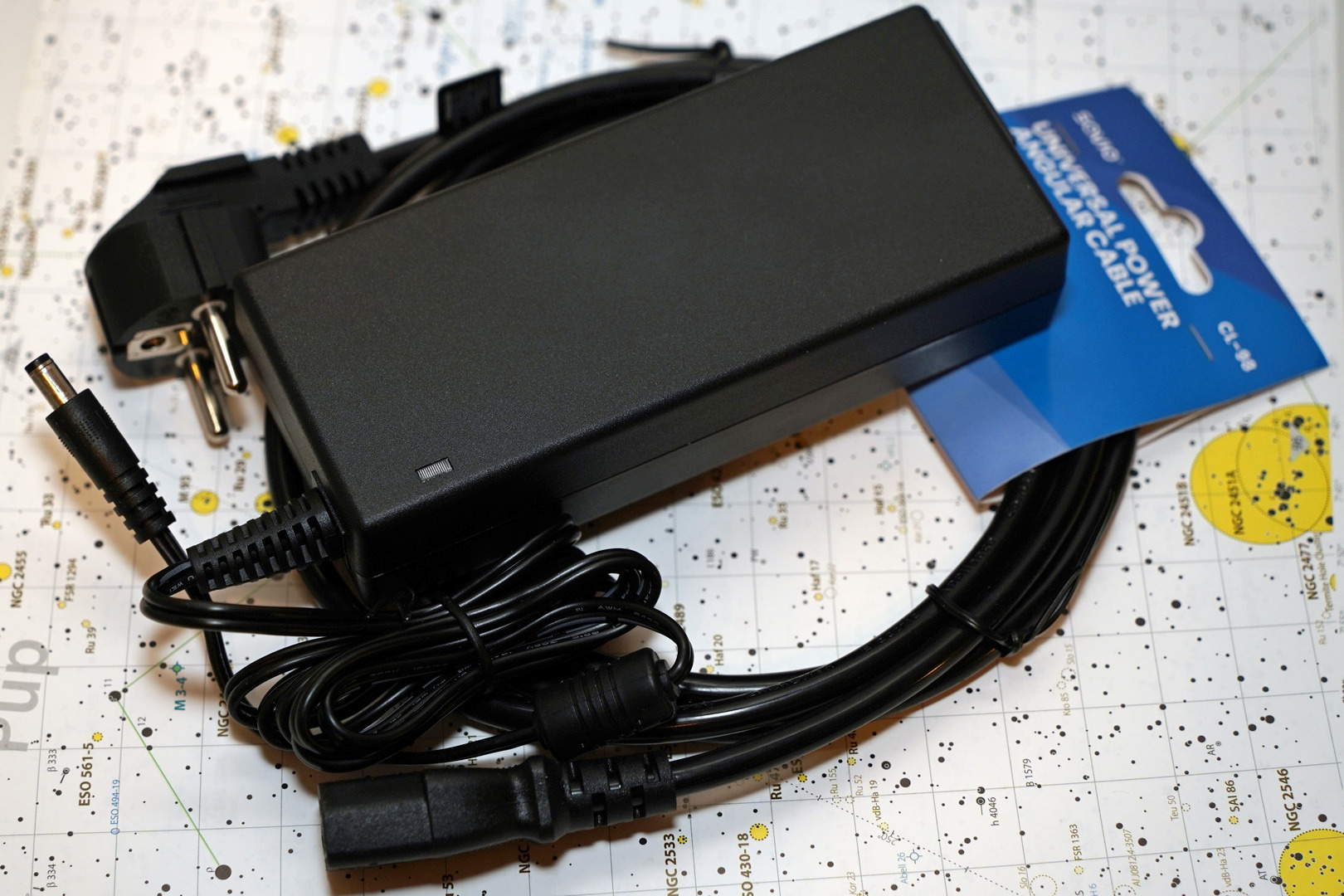

- power supply (either 120 or 90W)
- 1.8m AC cable

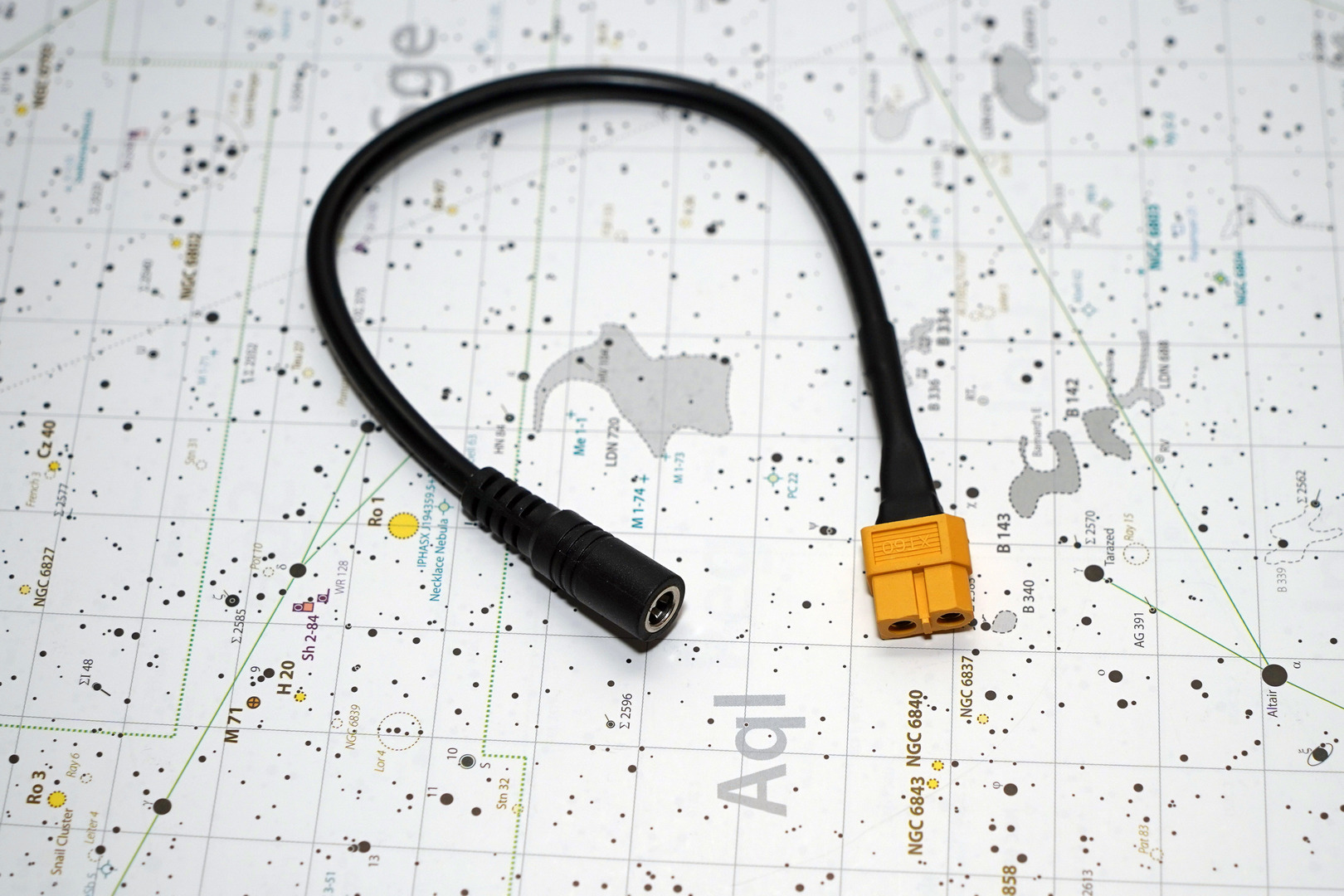

- female DC to female XT60 adapter cable

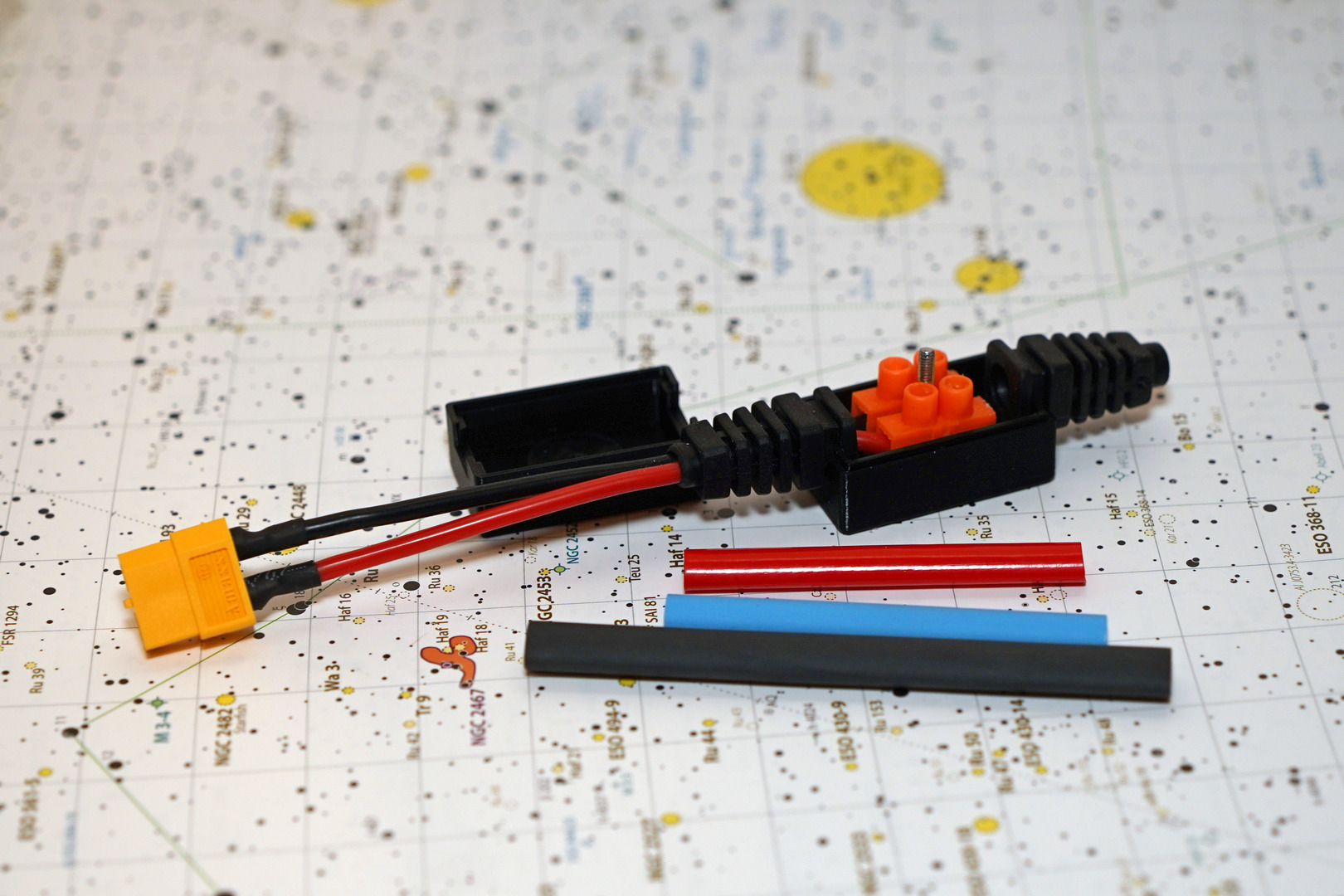

- female XT60 connector with wires and heat-shrink tubings
- dual terminal block with enclosure
🔌Connection options to the AstroLink device:
- use DC to XT60 adapter

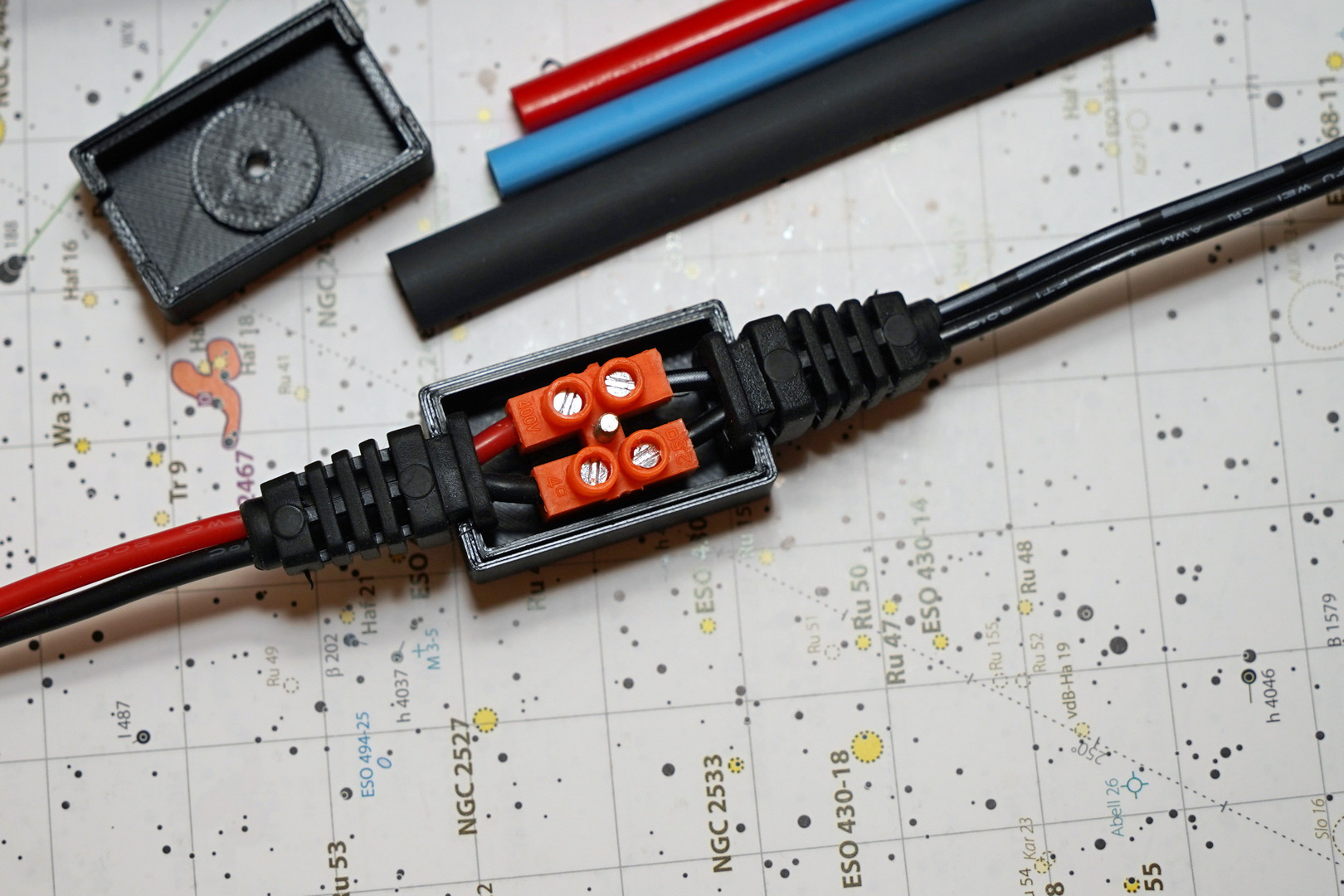

- remove the original DC 5.5mm connector from the cable and attach the XT60 connector with wires via a dual terminal block. Put on the included enclosure.
- remove the original DC 5.5mm connector from the cable and solder the XT60 connector with wires. Use heat-shrink tubing to isolate.
🛠️DC to XT60 connector replacement is available as a separate custom service – click here.🛠️
⚠️Solutions 2 and 3 void the original PSU manufacturer’s warranty!⚠️
Solution 1 is not recommended for currents above 5–6 A, as it may result in increased voltage drop.
Solution 2 is a better option and does not require soldering.
Solution 3 offers the best electrical performance and connection reliability.
Ensure your setup components receive stable, high-quality power for smooth and reliable astrophotography operation.
